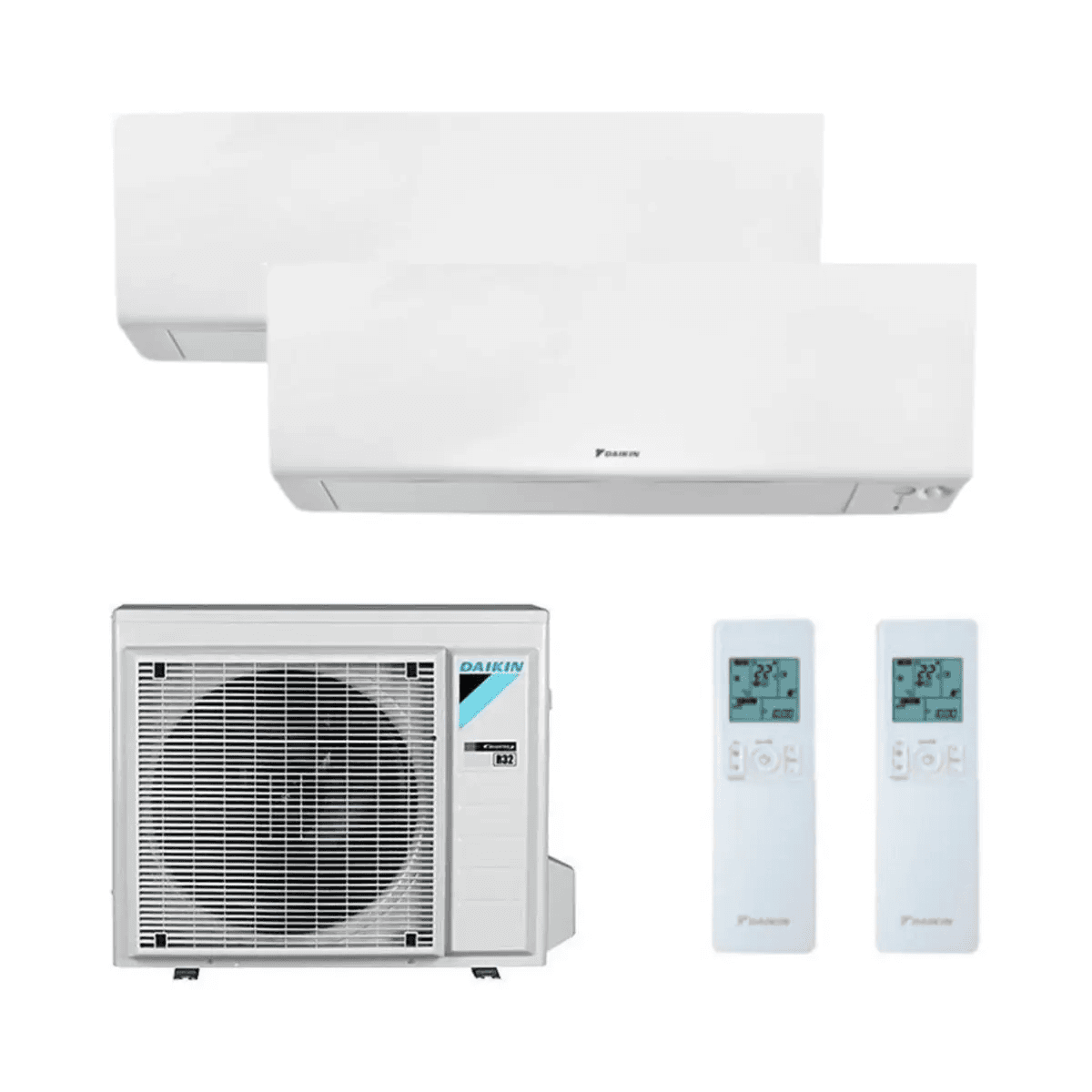

The Daikin Perfera 2x1 multisplit air conditioner with WiFi 2.0 kW + 2.5 kW is a climate control solution designed to provide cooling and heating in two rooms using a single outdoor unit. This set combines a Daikin Perfera FTXM20B 2.0 kW indoor unit, an FTXM25B 2.5 kW indoor unit, and a Daikin 2MXM40A9 outdoor unit with a nominal cooling capacity of 4.0 kW.
Thanks to its Inverter technology, heat pump with R-32 refrigerant and WiFi connectivity, it lets you enjoy a comfortable temperature all year round. Each indoor unit has independent temperature control, fan speed and scheduling, adapting to the needs of each room.
The Daikin Perfera range stands out for incorporating advanced air treatment technologies, such as Flash Streamer, a two-zone intelligent motion sensor and a three-dimensional air flow distribution system. Its quiet operation and energy-saving functions make this system a particularly interesting option for homes, apartments, bedrooms, offices and small workplaces.
This multisplit set is made up of the following units:
This configuration allows two rooms to be air conditioned using a single outdoor unit, reducing the space occupied on facades, balconies and terraces compared with installing two independent split systems.
The Daikin Perfera multisplit system allows the two indoor units to be controlled separately, adjusting the temperature, fan speed and operating schedules according to the needs of each room.
For example, the 2.0 kW FTXM20B unit can be installed in a small bedroom or office, while the 2.5 kW FTXM25B unit can be used in a larger bedroom.
Both units can operate simultaneously, although they must work in the same general cooling or heating mode. It is not possible to cool one room while heating the other.
The Daikin Perfera FTXM20B and FTXM25B indoor units feature WiFi connectivity so you can manage climate control from a smartphone or tablet using the Daikin Onecta app.
The app allows you to control each indoor unit independently from anywhere with an Internet connection.
Its main functions include:
WiFi control makes it easy to adapt the unit’s operation to the occupants’ daily routines, avoiding unnecessary consumption in rooms that are not being used.
The Daikin Perfera indoor units incorporate Flash Streamer technology, designed to help reduce certain allergens and odours present in indoor air.
This technology is complemented by different filtration elements:
The combination of these technologies helps improve indoor air quality and provides a more comfortable environment in air-conditioned rooms.
The indoor units include a two-zone intelligent presence sensor that detects the location of people within the room and adapts the direction of the airflow to reduce direct drafts on occupants.
When no presence is detected for a certain period, the unit can automatically activate energy-saving operation, helping to reduce electricity consumption.
Daikin’s Comfort+ technology uses dual flaps to improve air distribution in the room and promote a more even temperature.
In addition, three-dimensional airflow combines automatic vertical and horizontal movement to distribute cool or warm air across different areas of the room.
These functions help reduce temperature differences within the room and provide greater thermal comfort during operation.
One of the main features of the Daikin Perfera range is its quiet operation. Both the FTXM20B and FTXM25B indoor units achieve a minimum sound pressure of 19 dB(A) in quiet cooling mode.
In heating mode, both units can operate with a minimum sound pressure of 20 dB(A).
These noise levels make them especially suitable for bedrooms, children’s rooms, offices and other spaces where discreet climate control is desired.
The Daikin Perfera indoor units include different modes to adapt operation to the needs of each moment:
The system combines two indoor units in the 2.0 and 2.5 kW class, whose individual capacities add up to 4.5 kW. However, the combined nominal cooling capacity when both units operate simultaneously is 4.0 kW, determined by the capacity of the 2MXM40A9 outdoor unit.
The available capacity is distributed between the indoor units depending on which ones are operating, the thermal demand of each room and the environmental conditions.
According to Daikin’s official tables for the 2MXM40A9 outdoor unit and the 2.0 + 2.5 kW class combination, the nominal reference values are:
When both indoor units operate simultaneously under nominal conditions, the cooling capacity split is:
When only one indoor unit is operating, the available capacity can adapt to the demand of that room, within the unit’s operating limits.
The reversible heat pump allows the system to be used during the colder months, with a combined nominal heating capacity of 4.2 kW.
The nominal heating capacity split when both indoor units operate simultaneously is:
These values come from Daikin’s technical tables for the 20 + 25 class combination with the 2MXM40A9 outdoor unit. Actual performance may vary depending on indoor and outdoor temperatures, installation conditions and simultaneous operation.
The system uses Inverter technology to regulate compressor speed according to climate control needs, avoiding unnecessary starts and stops and promoting efficient electricity consumption.
The Daikin Perfera multisplit 2MXM40A9 range achieves energy efficiency levels of up to A+++ in cooling and A++ in heating, depending on the combination of indoor units installed.
A specialised distributor explicitly markets the FTXM20B + FTXM25B + 2MXM40A9 set with A+++ cooling and A++ heating classification. In addition, an official historical Daikin table for the 20 + 25 class combination publishes the following reference values:
SEER and SCOP indicators express the seasonal energy performance of climate control equipment. The higher the value, the greater the amount of thermal energy provided per unit of electrical energy consumed under standardised calculation conditions.
The annual consumption figures shown are standardised values used to compare equipment and do not represent the guaranteed actual consumption of a home. This will depend on insulation, selected temperatures, operating hours and weather conditions.
Note on energy efficiency: the historical SEER and SCOP values above correspond to a reference 20 + 25 class combination and do not specifically certify FTXM-B generation indoor units. The final energy label must be confirmed for the exact supplied combination.
The Daikin Perfera FTXM20B indoor unit is a compact wall-mounted unit, especially suitable for bedrooms, offices and rooms with moderate thermal needs.
The Daikin Perfera FTXM25B indoor unit is designed to provide efficient climate control in bedrooms, offices and other small to medium-sized rooms, combining quiet operation with WiFi control.
The Daikin 2MXM40A9 outdoor unit is an Inverter multisplit heat pump designed to connect two compatible indoor units through independent refrigerant circuits.
It features a hermetically sealed Swing compressor that adapts its operation to the thermal demand of the rooms, providing cooling and heating using R-32 refrigerant.
The Daikin Perfera 2x1 multisplit air conditioner has two independent refrigerant circuits that connect the FTXM20B and FTXM25B indoor units to the 2MXM40A9 outdoor unit.
The Daikin 2MXM40A9 outdoor unit has two refrigerant ports with the following diameters:
The refrigerant connections of the two indoor units match those of the outdoor unit, so no diameter reducers are required to connect this combination.
The installer must respect the correspondence between the refrigerant circuits and the wiring of each room, following Daikin’s official connection diagram.
To ensure correct system operation, the installation must respect the maximum refrigerant pipe distances and height differences established by Daikin.
For example, an installation can be carried out with a 10-metre refrigerant run to the FTXM20B unit and another 15-metre run to the FTXM25B unit, resulting in a total length of 25 metres. This layout complies with the length limits, although the height differences and other technical conditions must also be checked.
In this example, the theoretical calculation for additional refrigerant would be 100 grams of R-32, following the manufacturer’s instructions.
Refrigerant length is calculated by taking the liquid pipe outbound run between the units as the reference, without adding the gas pipe length of the same circuit again.
Daikin sets specific requirements for the thermal insulation of refrigerant piping in order to reduce energy losses and prevent condensation.
When the ambient temperature exceeds 30 °C and relative humidity is above 80%, Daikin specifies a minimum insulation thickness of 20 mm to prevent surface condensation.
The installer must also check the refrigerant piping conditions, condensate drainage, electrical supply and the necessary clearances around the outdoor unit.
The Daikin Perfera 2x1 multisplit 2.0 + 2.5 kW is especially interesting for homes and offices that need to air condition two rooms with moderate thermal requirements.
A common layout may consist of installing the 2.0 kW FTXM20B unit in a small bedroom or office, while the 2.5 kW FTXM25B unit is used in a larger bedroom.
As a commercial guideline, the 2.0 kW unit may be suitable for rooms of approximately 12 to 20 m², while the 2.5 kW unit can be used in rooms of around 15 to 25 m².
These areas are indicative and do not replace a thermal load calculation. The actual climate control capacity will depend on insulation, orientation, ceiling height, glazing area, occupancy and weather conditions.
It is also important to bear in mind that, when both indoor units operate simultaneously, the available power is distributed according to the system’s total capacity of 4.0 kW in cooling and 4.2 kW in heating.
To ensure proper sizing, it is advisable for a professional to calculate the cooling and heating needs of each room before installation.
The Daikin Perfera 2x1 set consists of a FTXM20B indoor unit, a FTXM25B indoor unit and a 2MXM40A9 outdoor unit, together with their corresponding remote controls and the standard accessories supplied by the manufacturer.
The materials required for installation are not included in the set. Depending on the characteristics of each home or premises, copper refrigerant piping, insulation, electrical and interconnection wiring, condensate drain piping, trunking, outdoor unit brackets and fixing elements will be required.
The installation must respect the maximum pipe lengths, height differences, refrigerant connections and power supply conditions established by Daikin.
Installation must be carried out by qualified professionals certified to work with air conditioning equipment that uses fluorinated gases, in compliance with current regulations and the manufacturer’s official technical instructions.
With its ability to air condition two rooms, independent WiFi control, Inverter technology, quiet operation and advanced air treatment technologies, the Daikin Perfera 2x1 multisplit air conditioner FTXM20B + FTXM25B + 2MXM40A9 offers a versatile climate control solution for enjoying cooling and heating all year round.
