The Daikin Perfera 2x1 multisplit air conditioner with WiFi, 2.0 kW + 2.0 kW is a climate control solution designed to provide cooling and heating in two rooms using a single outdoor unit. This set combines two Daikin Perfera FTXM20B indoor units of 2.0 kW each, equivalent to approximately 7000 BTU/h per room, with a Daikin 2MXM40A9 outdoor unit with 4.0 kW of nominal cooling capacity.
Thanks to its Inverter technology, reversible heat pump with R-32 refrigerant and WiFi connectivity, the system lets you enjoy a comfortable temperature all year round. Each indoor unit has individual control of temperature, fan speed and scheduling, adapting to the needs of each room.
The Daikin Perfera range stands out for incorporating advanced comfort and air treatment technologies such as Flash Streamer, two-zone intelligent motion sensor, Comfort+ and 3D airflow distribution. Its ultra-quiet operation, down to just 19 dB(A) in cooling, makes this system especially suitable for bedrooms, children's rooms, home offices and small offices.
This multisplit set is made up of the following units:
The 2x1 multisplit configuration allows you to air-condition two rooms using a single outdoor unit, reducing the space required on facades, terraces and balconies compared with installing two independent split systems.
The Daikin Perfera multisplit system allows the two indoor units to be regulated separately, adjusting temperature, fan speed and operating schedules according to the needs of each room.
For example, one 2.0 kW FTXM20B unit can be installed in a bedroom and the second unit in another room, office or study area.
Both units can operate simultaneously, although they must work in the same general cooling or heating mode. It is not possible to cool one room while heating the other.
This configuration allows only the indoor unit in the room that needs climate control to be used, promoting more rational energy use.
The two Daikin Perfera FTXM20B indoor units feature WiFi connectivity so you can manage climate control from a smartphone or tablet using the Daikin Onecta app.
The app allows you to control each indoor unit individually from anywhere with an Internet connection, making temperature management easier even when you are not at home.
Main functions include:
WiFi control makes it easier to adapt operation to the daily habits of occupants and avoid unnecessary consumption in rooms that are not being used.
The Daikin Perfera FTXM20B indoor units incorporate Flash Streamer technology, an air treatment system that uses high-speed electron discharge and is designed to help reduce certain allergens and odours present in the air.
This technology is complemented by different filtration elements:
The combination of these technologies helps improve indoor air quality and provide a more comfortable environment in the air-conditioned rooms.
To maintain the performance of the filtration system, it is recommended to clean and maintain the filters according to the manufacturer's instructions.
The indoor units include a two-zone intelligent presence sensor that detects the location of people within the room and adapts the direction of the airflow to reduce direct drafts on occupants.
When no presence is detected for a certain period, the unit can automatically activate an energy-saving operation, helping to reduce electricity consumption.
This technology improves comfort and optimises operation without the need to continuously adjust the temperature from the remote control.
Daikin's Comfort+ technology uses dual flaps to improve air distribution in the room and promote a more uniform temperature.
In cooling mode, the flaps can direct the airflow towards the upper part of the room to reduce direct drafts. In heating mode, they adjust their orientation to distribute warm air more effectively.
In addition, the 3D airflow combines automatic vertical and horizontal movement to distribute cold or warm air throughout different areas of the room.
These functions help reduce temperature differences and provide greater thermal comfort during operation.
One of the main features of the Daikin Perfera range is its quiet operation. The two FTXM20B indoor units reach a minimum sound pressure of 19 dB(A) in silent cooling mode.
In heating mode, each unit can operate with a minimum sound pressure of 20 dB(A).
These sound levels make the system especially suitable for bedrooms, children's rooms, home offices and other spaces where discreet climate control is desired.
The silent mode reduces fan speed when rest or room quietness is the priority.
The Daikin Perfera indoor units include different modes to adapt operation to the needs of each moment:
The system combines two 2.0 kW class indoor units, whose sum of individual capacities is 4.0 kW. In this configuration, the combined nominal cooling capacity when both units operate simultaneously is also 4.0 kW, according to Daikin capacity tables for the 20 + 20 class combination with the 2MXM40A9 outdoor unit.
The available capacity is distributed between the indoor units depending on which ones are operating, the thermal demand of each room and the environmental conditions.
According to Daikin's official technical tables for the 2MXM40A9 outdoor unit and the 2.0 + 2.0 kW class combination, the nominal reference values are:
When both indoor units operate simultaneously under nominal conditions, the cooling capacity distribution is:
When only one indoor unit is operating, the available capacity adapts to the demand of that room within the unit's limits. Actual performance depends on indoor temperature, outdoor conditions and installation characteristics.
The reversible heat pump allows the system to be used during the colder months, with a combined nominal heating capacity of 4.2 kW.
The nominal heating capacity distribution when both indoor units operate simultaneously is:
These values come from Daikin's official technical tables for the 20 + 20 class combination with the 2MXM40A9 outdoor unit. Capacities and consumption correspond to standard test conditions and may vary depending on indoor and outdoor temperatures and installation characteristics.
The system uses Inverter technology to regulate compressor speed according to climate control needs, avoiding unnecessary starts and stops and promoting efficient electricity consumption.
As a technical efficiency reference, Daikin publishes the following values for the equivalent FTXM-A generation combination with two class 20 indoor units and a 2MXM40A9 outdoor unit:
SEER and SCOP indicators express the seasonal energy performance of climate control equipment. The higher the value, the greater the amount of thermal energy provided for each unit of electrical energy consumed under standard calculation conditions.
The annual consumption figures shown are reference values used to compare equipment and do not represent the guaranteed actual consumption of a home. This will depend on insulation, selected temperatures, operating hours and climatic conditions.
Note on energy efficiency: the above values correspond to the equivalent FTXM-A generation combination, not to a specifically certified energy label for FTXM20B + FTXM20B + 2MXM40A9. The final classification and the SEER and SCOP values for these exact references must be confirmed using the manufacturer's official energy documentation.
The set includes two Daikin Perfera FTXM20B indoor units, designed to air-condition bedrooms, children's rooms, home offices and other spaces with moderate thermal needs.
The following specifications apply to each of the two indoor units:
The indoor units have a compact wall-mounted design, with a width of 804 mm and a depth of 252 mm, making them easy to integrate into bedrooms and smaller spaces.
Individual control of each unit allows different temperatures and operating schedules to be set, providing greater flexibility of use.

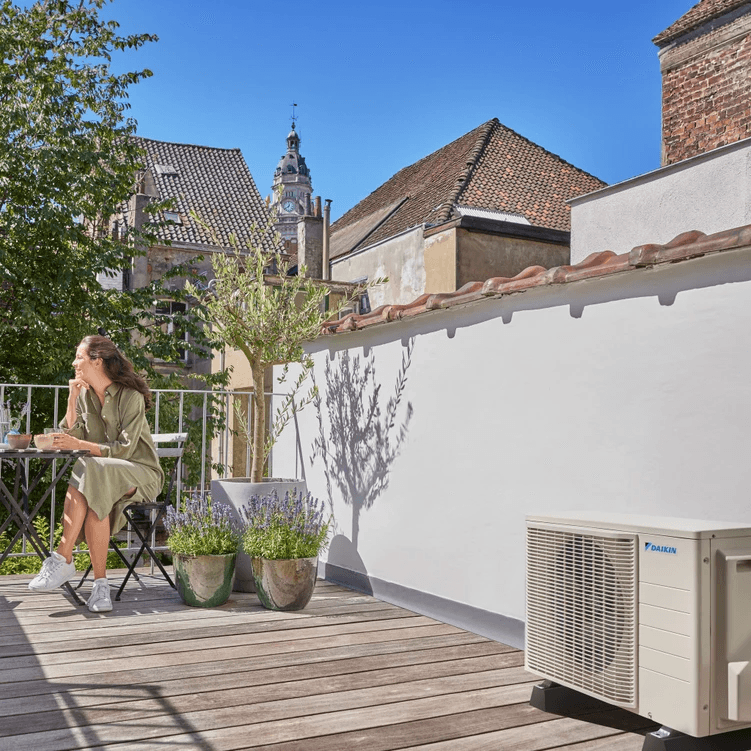

The Daikin 2MXM40A9 outdoor unit is an Inverter multisplit heat pump designed to connect up to two compatible indoor units via independent refrigerant circuits.
It features a hermetically sealed Swing compressor that adapts its operation to the thermal demand of the rooms, providing cooling and heating using R-32 refrigerant.
The outdoor unit uses R-32 refrigerant, whose global warming potential is lower than that of R-410A. Installation must comply with the safety and refrigerant handling conditions established by the manufacturer.
The Daikin Perfera 2x1 multisplit air conditioner has two independent refrigerant circuits that connect the two FTXM20B indoor units to the 2MXM40A9 outdoor unit.
The Daikin 2MXM40A9 outdoor unit has two refrigerant ports with the following diameters:
Installation advantage: the refrigerant connections of the two indoor units match the diameters of both outdoor unit ports. Therefore, no refrigerant reducers are required to connect this combination.
The installer must respect the correspondence between the refrigerant circuits and the wiring of each room, following Daikin's official connection diagram.
To ensure correct operation of the Daikin Perfera 2x1 system, the installation must comply with the maximum refrigerant pipe lengths and height differences established by Daikin.
For example, an installation can be made with a 10-metre refrigerant run to the first FTXM20B unit and another 15-metre run to the second, giving a total length of 25 metres. This layout complies with the manufacturer's length limits, although the height differences and other technical conditions must also be checked.
In this example, the additional refrigerant calculation would be 100 grams of R-32, following the installation manual instructions.
Refrigerant length is calculated by taking the liquid pipe run between the units as the reference, without adding the gas pipe length of the same circuit again.
Daikin establishes specific requirements for the thermal insulation of refrigerant piping, in order to reduce energy losses and prevent condensation.
When the ambient temperature exceeds 30 °C and relative humidity is above 80%, Daikin specifies a minimum insulation thickness of 20 mm to prevent surface condensation.
The installer must also check the correct condensate drainage, electrical supply and the necessary clearances around the outdoor unit.
The Daikin Perfera 2x1 multisplit 2.0 + 2.0 kW is especially suitable for homes and offices that need to air-condition two rooms with similar thermal requirements.
A common layout may consist of installing one 2.0 kW FTXM20B unit in the master bedroom and another in a children's room, office or second bedroom.
As a commercial guideline, each 2.0 kW unit may be suitable for rooms of approximately 12 to 20 m², depending on the conditions of the property.
These areas are indicative and do not replace a thermal load calculation. The actual climate control capacity will depend on insulation, orientation, ceiling height, glazing area, occupancy and climatic conditions.
When both indoor units operate simultaneously, the set has a nominal cooling capacity of 4.0 kW and a nominal heating capacity of 4.2 kW.
To ensure proper sizing, it is recommended that a professional calculate the cooling and heating needs of each room before installation.

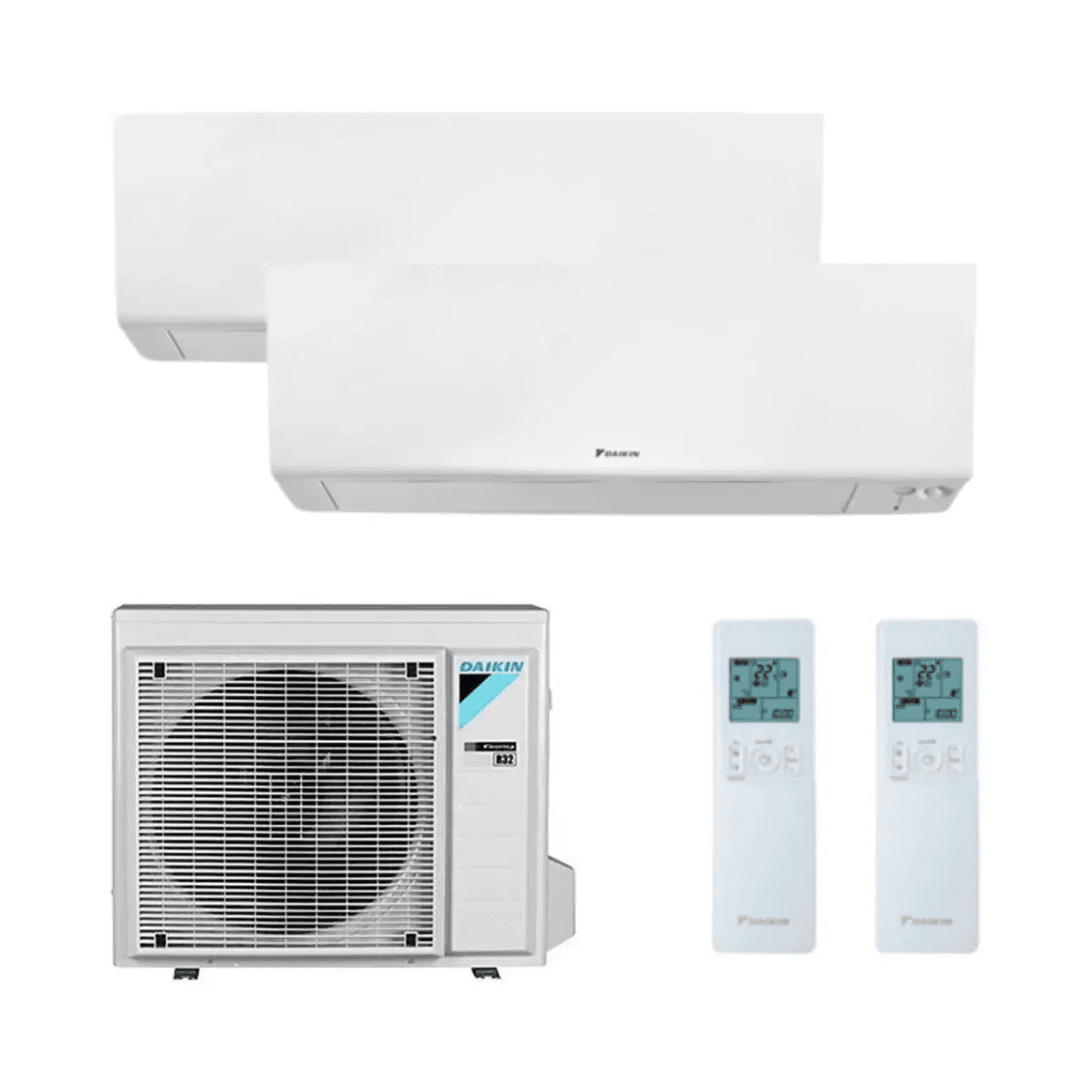

The Daikin Perfera 2x1 set consists of two FTXM20B indoor units and one 2MXM40A9 outdoor unit, together with their corresponding remote controls and the standard accessories supplied by the manufacturer.
The materials required for installation are not included in the composition of the set. Depending on the characteristics of each home or premises, it will be necessary to have copper refrigerant piping, insulation, electrical and interconnection wiring, condensate drain pipes, trunking, outdoor unit supports and fixing elements.
For this configuration, both circuits use 1/4" liquid and 3/8" gas piping, which simplifies the selection of the required refrigerant materials.
Installation must comply with the maximum pipe lengths, height differences, power supply conditions and start-up instructions established by Daikin.
Installation must be carried out by qualified professionals accredited to work with climate control equipment using fluorinated gases, in compliance with current regulations and the manufacturer's official technical instructions.
With its ability to air-condition two rooms, independent WiFi control, Inverter technology, ultra-quiet operation and advanced air treatment technologies, the Daikin Perfera multisplit 2x1 FTXM20B + FTXM20B + 2MXM40A9 air conditioner offers a versatile climate control solution for enjoying cooling and heating all year round.
