4-in-1 Air Conditioner with WiFi Midea Breezeless E 2.5 kW (3) + 3.5 kW

The Midea Breezeless E 4×1 WiFi 2.5 kW (×3) + 3.5 kW air conditioner is a high-performance, elegantly designed multi-split system, specially designed to cool four rooms of different sizes. The set includes three indoor units MCB1‑09N8 (2.5 kW each), one indoor unit MCB1‑12N8 (3.5 kW), one outdoor multisplit unit M4O‑36N8 (10.5 kW total), and four remote controls, allowing individual control in each room.

Thanks to Midea’s “breezeless” technology, the indoor units feature a micro-perforated diffuser that disperses air very gently, avoiding direct drafts and providing even thermal comfort. In addition, the system features integrated WiFi, allowing you to manage and program each unit via the Midea Link app from anywhere.

With a total cooling capacity of approximately 11 kW (equivalent to 37,500 BTU), this system is ideal for large homes, vacation rentals, or facilities with multiple rooms. The inverter technology ensures efficient, quiet operation tailored to the thermal needs of each space, optimizing energy consumption.

Main technical features:

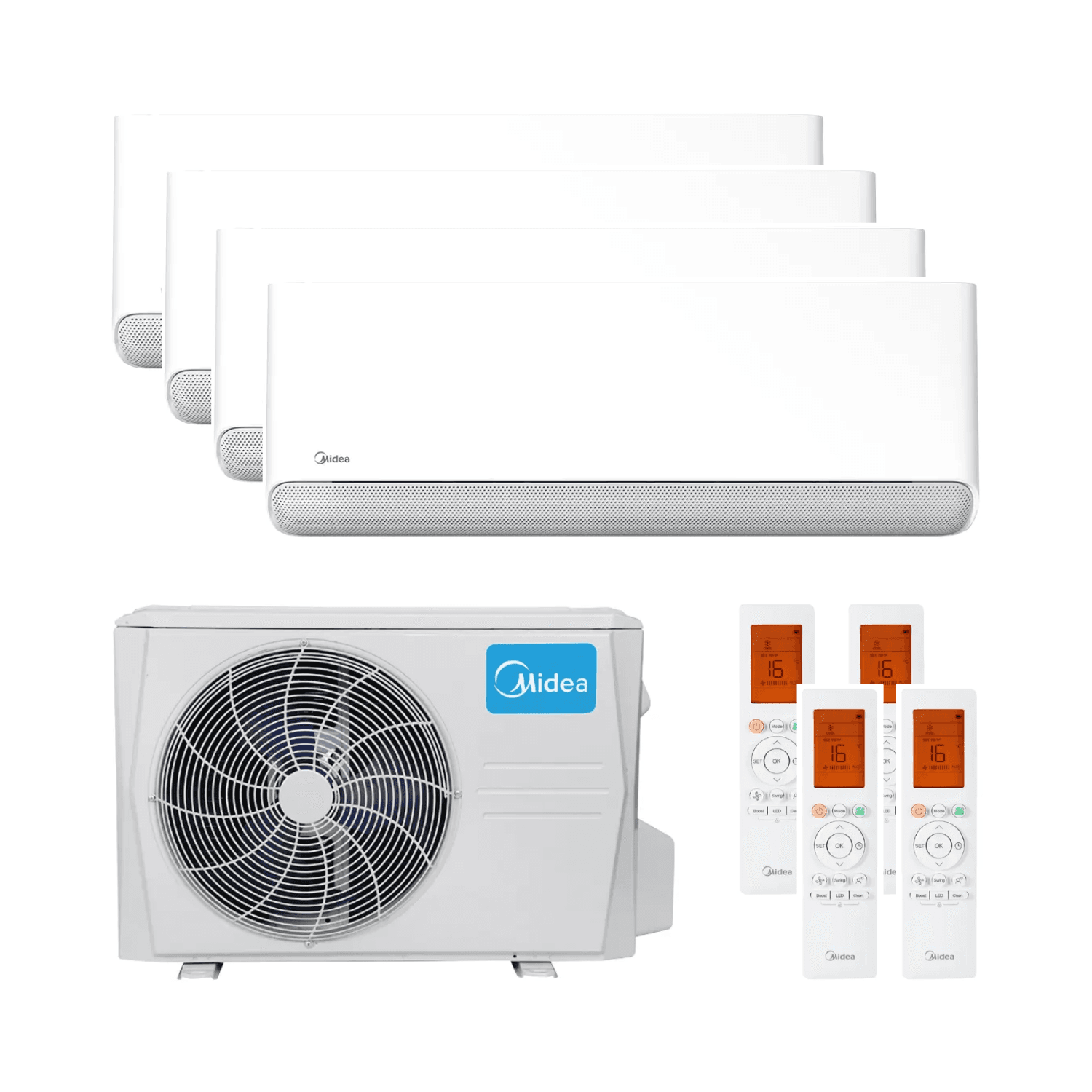

• Set composition:

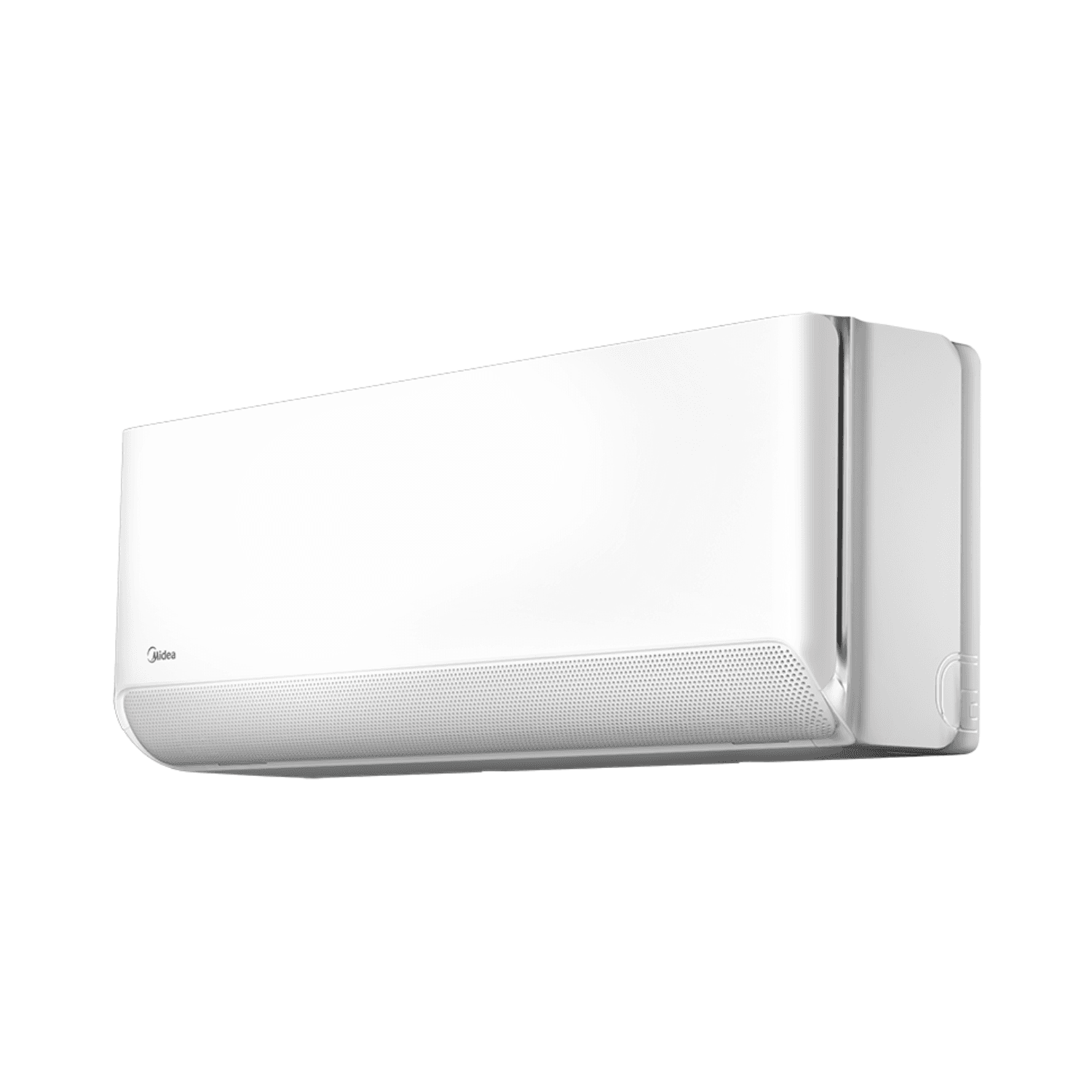

  • 3× indoor unit MCB1‑09N8 (2.5 kW)
  • 1× indoor unit MCB1‑12N8 (3.5 kW)
  • Outdoor multisplit unit M4O‑36N8 (10.5 kW)
  • 4× remote controls (one per indoor unit)
• Total cooling capacity: approx. 11 kW (37,500 BTU)
• Estimated heating capacity: similar to cooling (see technical sheet)
• Refrigerant: R32
• WiFi: integrated, remote control via Midea Link app
• Breezeless design: micro-perforated diffuser for uniform airflow without uncomfortable drafts
• Silent mode: minimal noise emissions (≈ 19–22 dB(A) indoors)
• Key features:
  • Individual room control
  • Timer and night mode
  • Auto-restart after power outage
  • Automatic dehumidification
• Outdoor operating range: –15 °C to +46 °C (cooling and heating)
• Maximum pipe length: up to 30 m (total)
• Maximum height difference: 10 m between units
• Refrigerant connections:
  • Gas: 1/2" (12.7 mm)
  • Liquid: 1/4" (6.35 mm)
• Drain diameter: 16 mm
• Indoor unit dimensions (MCB1‑09N8): approx. 795 × 270 × 194 mm
• Indoor unit weight: approx. 8 kg (each)
• Indoor unit dimensions (MCB1‑12N8): approx. 860 × 300 × 200 mm
• 3.5 kW indoor unit weight: approx. 10 kg
• Outdoor unit dimensions: approx. 870 × 650 × 330 mm
• Outdoor unit weight: approx. 48 kg
• Power supply: Single-phase 230 V / 50 Hz (for the entire system)

This 4×1 multi-split system is an advanced solution for residential or commercial installations with multiple rooms, providing efficient, quiet air conditioning with independent WiFi control. Ideal for installers, renovators, and maintenance companies seeking a versatile, high-performance unit with a discreet and modern design, courtesy of Breezeless technology.
