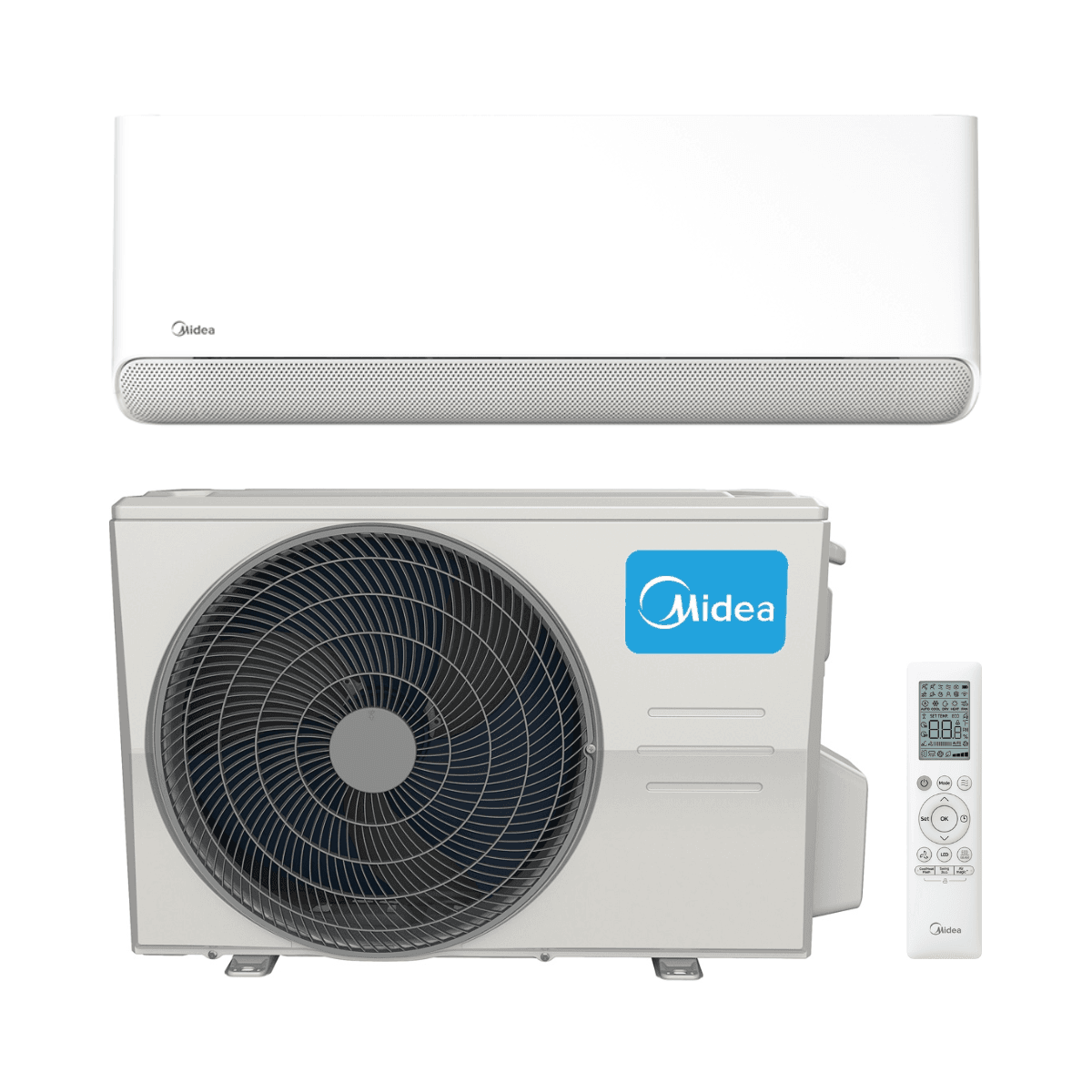

Midea i-Cube Breezeless WiFi Air Conditioner 7.1 kW 24000 BTU

The Midea i-Cube Breezeless 7.1 kW (24000 BTU) air conditioner is designed to efficiently and comfortably cool large rooms, with a recommended area of 35 to 65 m². The set consists of the CB1-24 HRFN8-I indoor unit and the MOM-24NXD0 outdoor unit, with an A++ energy rating in cooling and A+ in heating, Full DC Inverter technology, and built-in WiFi connectivity.

Breezeless technology: air conditioning without drafts

The innovative Twin Flap™ Breezeless technology features a dual-louver system with 7,928 micro-holes that transform the airflow into thousands of soft, uniform microcurrents, eliminating the direct drafts typical of conventional split units. It also includes side air outlet for 360º enveloping cooling, distributing air conditioning evenly throughout the room.

Built-in WiFi and voice control

The built-in WiFi as standard lets you manage the unit remotely from anywhere through the Midea App (SmartHome), with scheduling, temperature adjustment, and energy consumption monitoring. It is compatible with the main voice assistants: Amazon Alexa and Google Home. OTA (Over-The-Air) technology allows wireless software updates to optimize the unit’s performance over time.

Inverter Quattro compressor and efficiency algorithm

The system incorporates a high-efficiency Full DC Inverter Quattro compressor, which continuously adapts operating power to the room’s real needs, reducing consumption and maintaining a stable temperature. The ⍺ control algorithm analyzes usage habits and environmental conditions to calculate the most efficient climate control program, saving up to 20% in Eco Comfort mode. The outdoor fan also uses DC Inverter technology, optimizing overall performance.

Air filtration and indoor air quality

The unit includes a dual antibacterial filter system that removes bacteria, viruses, allergens, dust, and bad odors, improving indoor air quality. The Air Magic function generates millions of positive and negative ions to purify the air. The self-cleaning function removes condensation water from the heat exchanger, preventing bacteria from proliferating inside the unit.

Quiet operation and special modes

The Silence mode reduces the indoor unit’s noise level to a minimum, especially suitable for bedrooms and rest areas. The CoolFlash Plus function quickly reaches the desired room temperature, lowering the outlet temperature by up to 6.3 °C in just 10 minutes.

• Indoor unit sound pressure (silent/low/medium/high): 24 / 30.5 / 40.5 / 45 dB(A)
• Outdoor unit sound pressure: 59.5 dB(A)

Seasonal performance and energy consumption

• Rated cooling capacity (min./max.): 7.04 kW (1.38 / 8.30 kW)
• Rated heating capacity (min./max.): 7.33 kW (1.61 / 9.06 kW)
• Rated heating capacity at -7 °C: 6.57 kW
• Rated cooling input power (min./max.): 2,480 W (300 / 3,260 W)
• Rated heating input power (min./max.): 2,040 W (340 / 3,000 W)
• EER: 2.84
• COP: 3.59
• SEER (cooling): 6.40 — Class A++
• SCOP (heating): 4.10 — Class A+

Outdoor unit protection: Golden Fin™

The outdoor unit heat exchangers are protected with the exclusive Golden Fin™ coating, which withstands salty environments, rain, and corrosive agents, prevents bacterial growth, and improves thermal efficiency, extending the unit’s service life.

Refrigerant and charge

• Refrigerant: R-32
• GWP: 675
• Factory charge: 1.45 kg
• Additional charge (from 5 m): 24 g per meter

Refrigerant connections (pipe diameters)

• Liquid: 9.52 mm (3/8")
• Gas: 15.88 mm (5/8")

Installation: lengths and height difference

• Pre-charged / maximum pipe length: 5 / 50 m
• Maximum height difference: 25 m

Operating range

• Cooling: -15 ~ 50 °C
• Heating: -15 ~ 24 °C

Dimensions and weight

• Indoor unit CB1-24 HRFN8-I (MCB1-24N8): 1,030 x 338 x 238 mm · 12.3 kg
• Outdoor unit MOM-24NXD0: 890 x 673 x 342 mm · 41.9 kg

Reference electrical data

• Power supply: 220-240 V / 1 Ph / 50 Hz
• Maximum current: 13.38 A
• Recommended circuit breaker: D16
• Power cable: (2+T) × 2.5 mm²
• Communication cable: (4+T) × 2.5 mm²

Package contents

Set consisting of 1 CB1-24 HRFN8-I indoor unit, 1 MOM-24NXD0 outdoor unit, and RG10N8(2Hs)/BGEF remote control, ready for professional installation.
