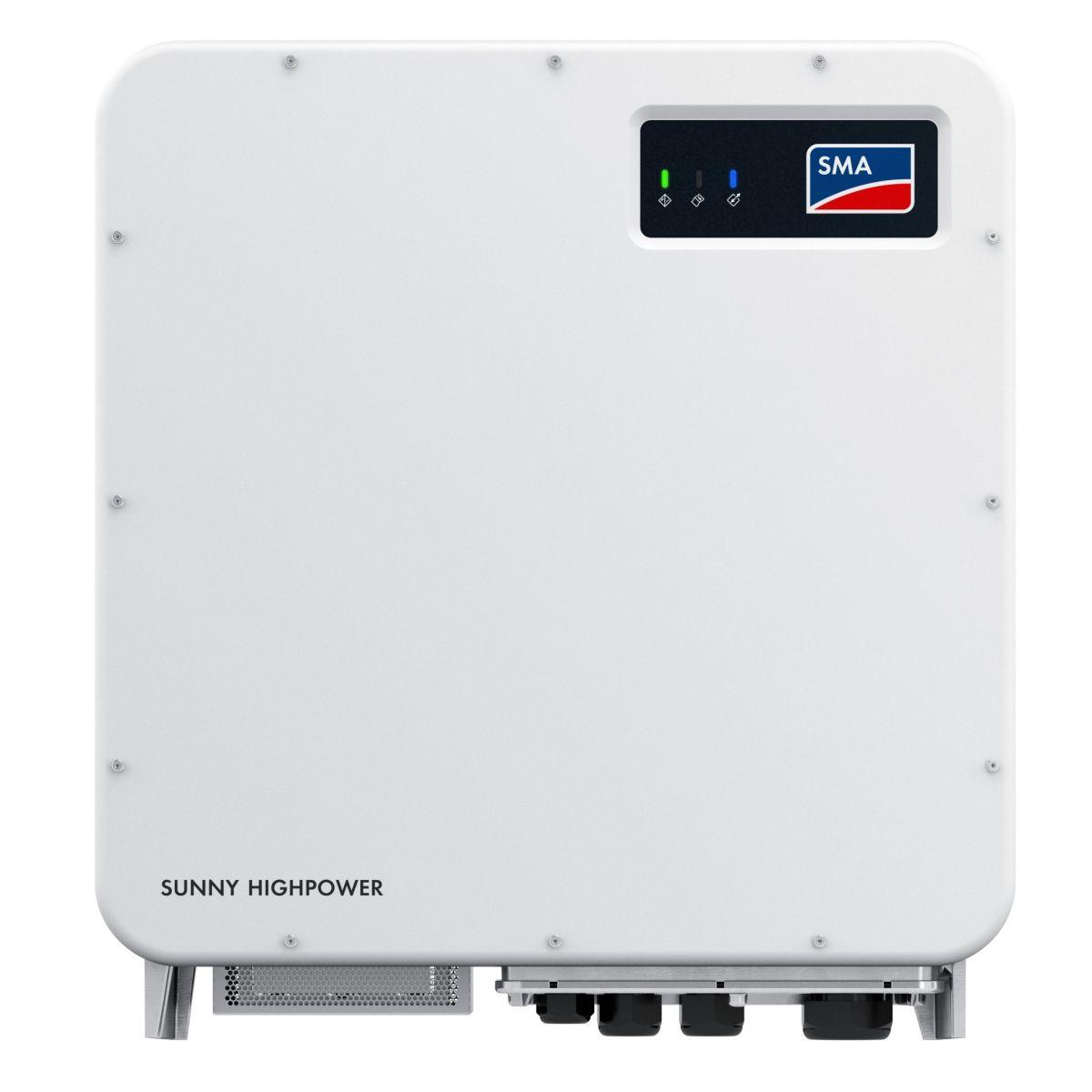

100 kW Three-Phase Solar Inverter SMA Sunny Highpower PEAK3

The SMA Sunny Highpower PEAK3 (model SHP 100-21) is a high-performance three-phase solar inverter, specifically designed for large photovoltaic plants. With a nominal power of 100 kW, this inverter offers maximum power density in a compact and lightweight design, optimising both space and resources required for installation. Thanks to its ability to operate efficiently even in extreme conditions, the Sunny Highpower PEAK3 is a robust and reliable solution for any large-scale project.

This inverter is designed to meet the most demanding requirements of grid operators and integrates perfectly with SMA's Data Manager, which facilitates system control and monitoring. The possibility of incorporating direct current (DC) Combiner Boxes simplifies planning and reduces costs in large-scale photovoltaic projects, allowing for a decentralised connection that can reach up to 180 kW per system.

The Sunny Highpower PEAK3 stands out for its safety and reliability, offering complete protection at all stages of the electricity generation process. Additionally, its installation is quick and easy, making it an ideal choice for commercial and industrial projects that require efficient and hassle-free commissioning.

Key technical specifications:

• Maximum AC output power: 100,000 W.
• Nominal DC input voltage: 590 V.
• Maximum DC input voltage: 1000 V.
• DC input voltage range: 590 V - 1000 V.
• Maximum DC input current: 180 A.
• Number of MPPTs: 1.
• Maximum AC power: 100,000 W.
• Maximum AC current: 151 A.
• Output phases: Three-phase.

The SMA Sunny Highpower PEAK3 is optimised to operate in a voltage range of 590 V to 1000 V in direct current (DC), making it compatible with a wide variety of solar panel configurations. This range allows for efficient utilisation of the generated solar energy, minimising losses and maximising performance. With an integrated MPPT (Maximum Power Point Tracking), the inverter ensures that the maximum possible energy is always obtained from the solar modules, even under variable irradiation conditions.

Additional features:

• Advanced monitoring: The Sunny Highpower PEAK3's monitoring system is perfectly integrated with the ennexOS platform, enabling efficient control of the solar plant's performance. Additionally, it can be managed remotely via the Data Manager, facilitating the operation and maintenance of large photovoltaic systems.
• Simplified installation: Thanks to its compact and lightweight design (weighing 99 kg), this inverter is easy to transport and install, significantly reducing installation times and associated costs.
• Safety: The inverter features advanced safety systems that ensure stable and secure operation, protecting both the equipment and the overall electrical system.
• High power density: With an exceptional size-to-power ratio, the PEAK3 inverter is ideal for projects where space and efficiency are key factors.

The Sunny Highpower PEAK3 also stands out for its robustness. With dimensions of 770 x 830 x 462 mm, it offers exceptional performance in a compact format, ideal for large photovoltaic plants. Its design is intended to maximise the installed power in the smallest possible space, making it an ideal choice for commercial, industrial, and utility projects seeking cost-effective and efficient solutions.

Advantages of the SMA Sunny Highpower PEAK3:

• Maximum efficiency: Operating with a maximum current of 180 A on input and 151 A on output, the inverter is capable of managing large energy flows without compromising efficiency.
• Advanced control: The integrated Data Manager allows precise monitoring of system performance and facilitates the management of large-scale solar projects.
• Proven reliability: Designed to withstand extreme conditions, this inverter guarantees continuous and safe operation throughout its lifespan.
• Compatibility: The inverter can be used in different types of projects, from ground-mounted solar plants to industrial or commercial rooftop installations.

The Sunny Highpower PEAK3 is an excellent choice for those looking to maximise the performance of their photovoltaic installations. With its high power density, ease of installation, and advanced monitoring technologies, this inverter ensures efficient, reliable, and long-term operation, reducing both operating and maintenance costs while guaranteeing an optimal return on investment.

Ideal for large-scale projects, the SMA Sunny Highpower PEAK3 represents a complete and efficient solution for optimising solar energy production in the commercial and industrial sector.
